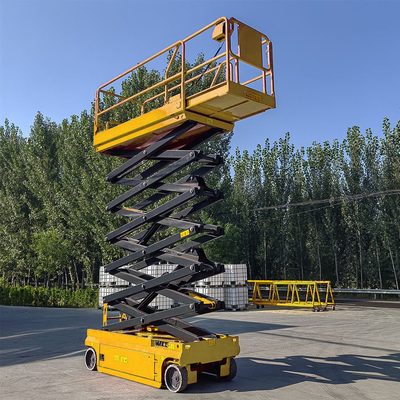

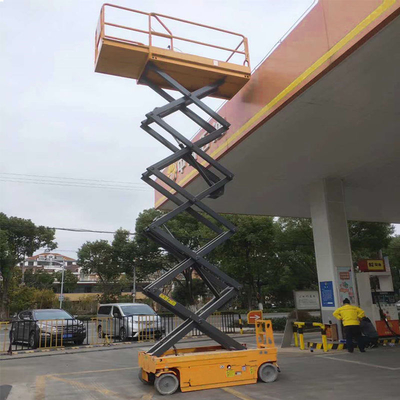

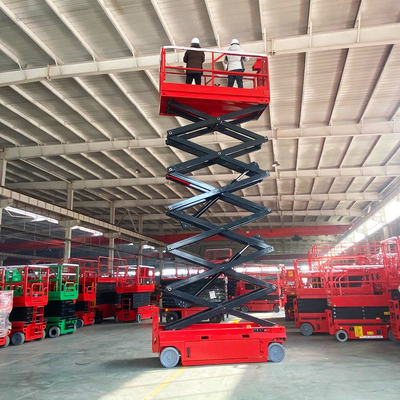

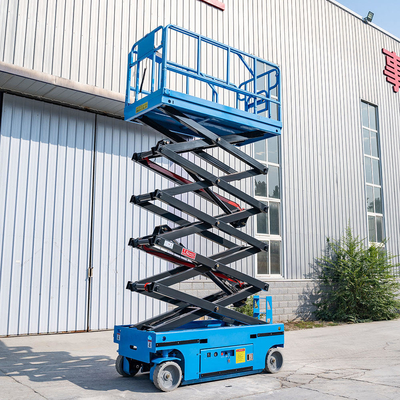

16m Electric Self Propelled Scissor Lift 230KG Capacity

Nama merek:	DZ
Nomor Model:	DZZ14
MOQ:	1
harga:	dapat dinegosiasikan
Ketentuan Pembayaran:	L/c, t/t

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Shanghai, Cina

Sertifikasi:

Nama Produk:

Lift gunting yang didorong sendiri

Jenis:

Platform kerja udara

Ukuran platform:

2,64mx 1,12m

Kapasitas muatan:

230kg

Tinggi pengangkat:

Tinggi kerja:

Pengangkat motor:

24V/4.5kw

Lift Drive / Aktuasi:

Motor listrik

Kecepatan Naik/Turun:

82/60 detik

Baterai:

4x12V/300Ah

Menyoroti:

16m electric scissor lift

self propelled scissor lift 230kg

electric scissor lift with warranty

Deskripsi Produk

14m/16m Electric Hydraulic Self-Propelled Scissor Lift Platform

Key Specifications

Attribute	Value
Product Name	Self Propelled Scissor Lift
Type	Aerial Work Platform
Platform Size	2.64m x 1.12m
Load Capacity	230KG
Lifting Height	16m
Working Height	14m
Lifting Motor	24V/4.5KW
Lift Drive/Actuation	Electric Motor
UP/Down Speed	82/60sec
Battery	4x12V/300Ah

Product Overview

The self-propelled scissor lift features independent walking and lifting functions, with a steering wheel for directional control. Equipped with speed control and braking mechanisms, it operates via battery-driven DC motor (with optional AC motor or diesel engine configurations). This eliminates the need for manual traction or external power supply, offering flexible movement and efficient high-altitude operations.

Standard Features

Battery power: long battery life and maintenance free
Faster & Intelligent charger
Non-mark solid tires and smooth operation, friendly to sensitive floors
Environmental friendly with 0 emission and 0 leak
Extension platform, expand working range
Cost effective compared with boom lifts
Maintenance supporting bar guarantees safety during maintenance
Emergency stop
Manual lower down device
Dual control on platform or ground
25% grade ability
Quick fold railings
Overload sensing
Slope protection

Technical Specifications

Model	DZZ06SP	DZZ08NP	DZZ06	DZZ08	DZZ10	DZZ12	DZZ14
Rated Load Capacity	230Kg	230Kg	450Kg	450Kg	320Kg	320Kg	230Kg
UP/Down Speed	20/20sec	30/25sec	24/34sec	36/35sec	60/40sec	60/50sec	82/60sec
Battery	4x6V/225Ah	4x6V/225Ah	4x6V/225Ah	4x6V/240Ah	4x6V/240Ah	4x12V/300Ah	4x12V/300Ah

Applications

Self-propelled Scissor Lifts are primarily designed for elevating personnel with their tools to required working heights, facilitating maintenance, assembly, and similar operations.

Key Advantages

Compact structure design enhances flexibility and agility for aerial tasks
Comprehensive safety devices ensure worker protection and operational efficiency
Extended platform provides expanded working range
High-quality batteries deliver extended working life and endurance

Frequently Asked Questions

Can you customize products?

Yes, we offer customization services. Our experienced engineering team can design products according to your specific requirements.

How do you ensure product quality?

All products undergo thorough testing before delivery. We welcome customers to inspect products at our factory.

What is your delivery & after-sales service?

Delivery schedules vary by order quantity. We provide 24/7 technical support and promptly address all product-related inquiries.

How long will it take you to ship the goods?

Shipping times depend on product specifications, but we guarantee prompt dispatch, typically within 5-10 days.

What payment methods do you accept?

We typically accept T/T and L/C payments. Alternative payment terms can be discussed upon request.
